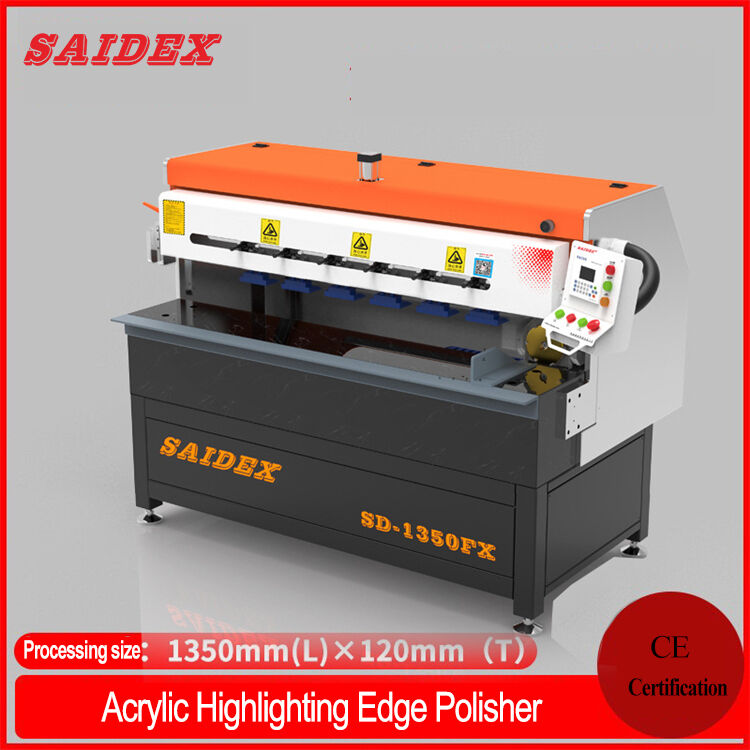

SD-1350FX High Speed Acrylic Polishing Machine

The SD-1350FX is a servo-driven acrylic polishing machine built for factories that run continuous production. A cloth wheel spindle running from 6000 to 12000 rpm removes cutting marks and delivers a high-gloss, mirror-clear edge on PMMA, PS and PC sheets in a single pass.

Core Selling Points

• High speed polishing efficiency: 6000-12000 rpm cloth wheel speed with 0-2 m/min feed rate, processing up to 2 meters of edge per minute, about 3 times faster than manual buffing.
• Servo motor feeding: closed-loop servo feed keeps constant pressure along the whole sheet, so gloss level stays uniform from start to end with no burnt or wavy edges.
• 3.5 kW rated motor: stable torque under continuous load, no power drop when polishing thick boards.
• Tool-free adjustment: polishing angle from 0 to 60 degrees can be set without changing tools, reducing changeover time to under 2 minutes.
• Dust collection interface: double 100 mm suction ports keep the working area clean and protect the operator.

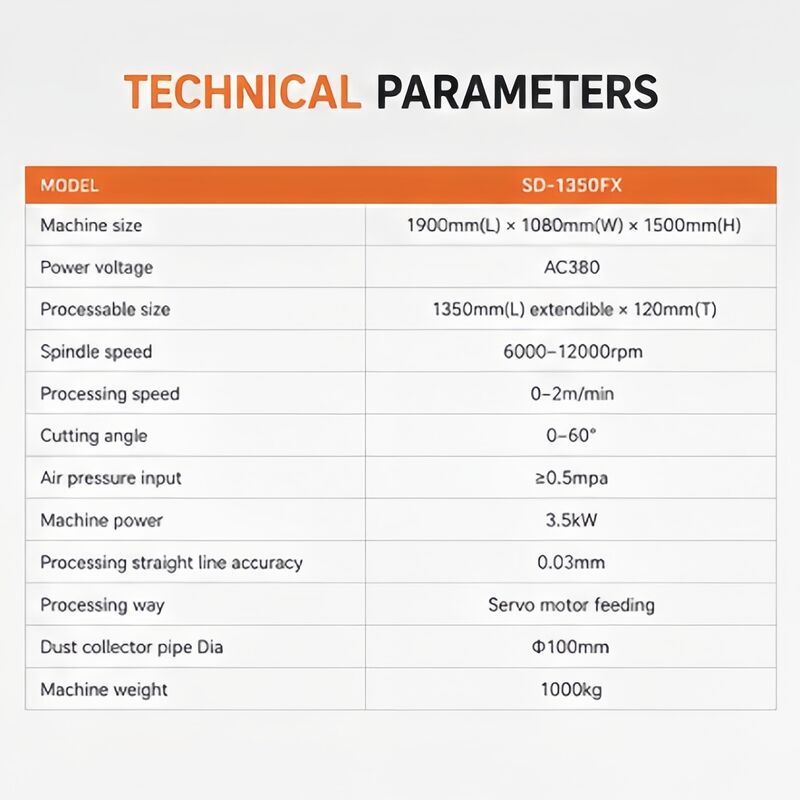

Technical Specification

Typical Applications

Acrylic display stands, light guide plates, advertising signs, aquarium panels, acrylic trophies, machine guards and PMMA furniture components.

Packing and Service

Each unit is wrapped with shock-proof foam and fixed on an angle iron frame inside a fumigation-free plywood case. We provide operation video, English manual, one year warranty and overseas technical guidance.

Send your sheet size, thickness and target gloss level, our engineer will confirm the right configuration and quotation within 12 hours.
