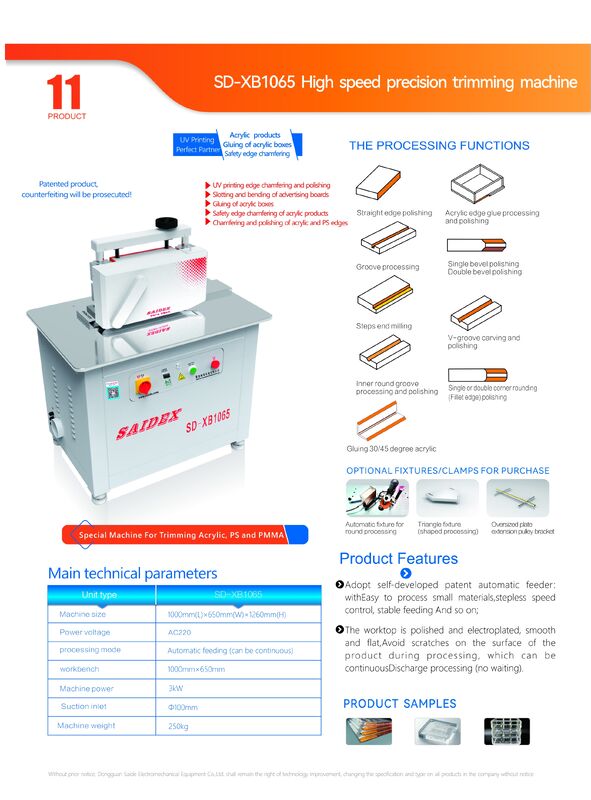

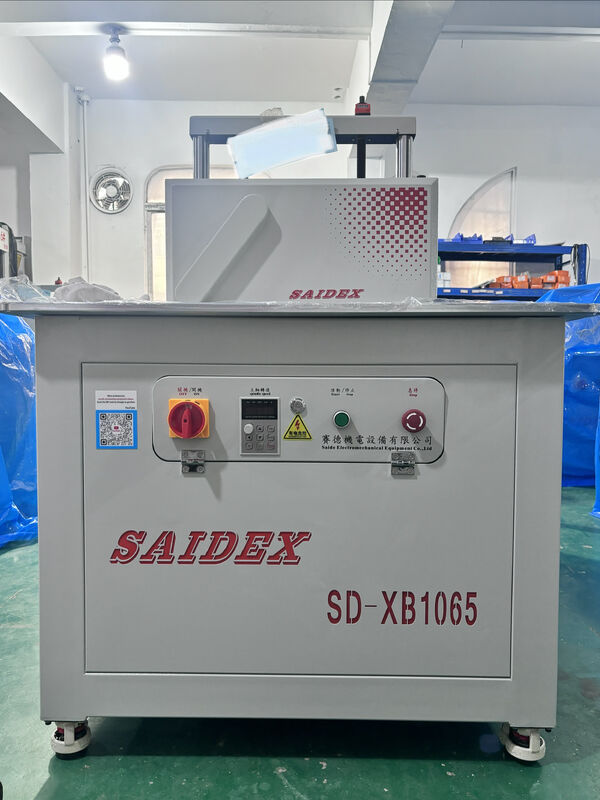

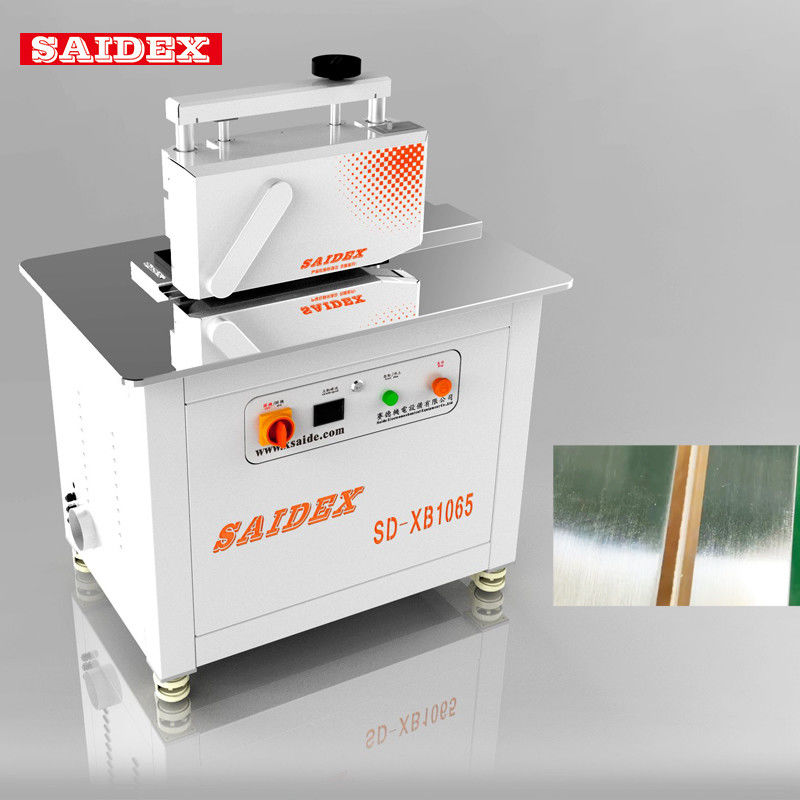

SD-XB1065 High-Speed Precision Acrylic Trimming Machine

Automatic Feeding | Multi-Function Processing | Precision Trimming & Polishing

The SD-XB1065 High-Speed Precision Trimming Machine is a multifunctional acrylic processing machine specially developed for acrylic, PMMA and PS materials. It integrates trimming, edge polishing, bevel processing, groove machining, rounding and acrylic bonding edge processing into one machine.

With its self-developed automatic feeding system, the SD-XB1065 can continuously process small acrylic workpieces with stable and smooth feeding. This makes it especially suitable for advertising products, acrylic display products, acrylic boxes, UV-printed products and other small- and medium-sized acrylic components that require efficient edge processing and high-quality finishing.

The machine adopts a polished and electroplated worktable, providing a smooth and flat working surface while helping reduce scratches on the acrylic surface during processing. Combined with automatic feeding, operators can achieve more efficient and consistent production without waiting between individual workpieces.

Key Features

1. Automatic Feeding System

The SD-XB1065 is equipped with a self-developed patented automatic feeder, specially designed for processing small acrylic materials.

The automatic feeding system allows the workpiece to move smoothly through the processing area, helping improve production efficiency and reduce manual feeding operations. It supports continuous feeding and continuous processing, making it suitable for batch production.

Benefits:

• Automatic material feeding
• Stable and continuous operation
• Easy processing of small workpieces
• Reduced manual operation
• Improved production efficiency
• Suitable for batch processing

2. Multifunctional Acrylic Processing

One machine can perform multiple processing operations, helping manufacturers reduce the need for multiple separate machines.

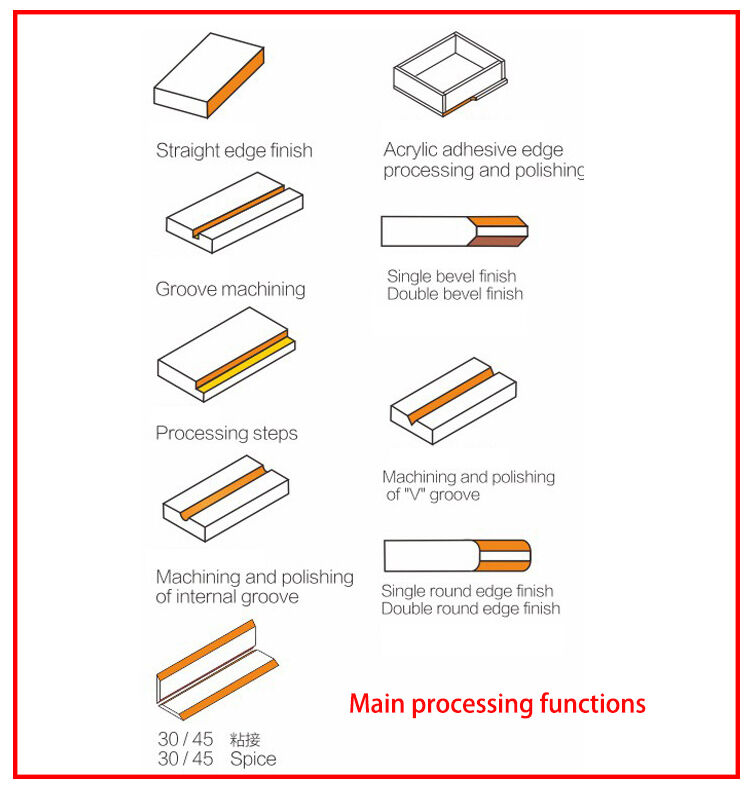

The SD-XB1065 can be used for:

• Straight edge polishing
• Acrylic bonding edge processing and polishing
• Groove processing
• Single bevel polishing
• Double bevel polishing
• Step end milling
• V-groove carving and polishing
• Inner round groove processing and polishing
• Single or double round edge / fillet edge polishing
• 30° / 45° acrylic bonding

This multifunctional design makes the machine suitable for different acrylic fabrication requirements and production processes.

3. Excellent Edge Finishing

The SD-XB1065 is designed for acrylic edge trimming and finishing applications where a clean and smooth edge is required.

It can process straight edges, bevels, grooves, rounded edges and bonding surfaces according to different product requirements.

For acrylic manufacturers, this means that one machine can be used to prepare edges for display products, boxes, advertising boards, UV-printed products and other acrylic components.
