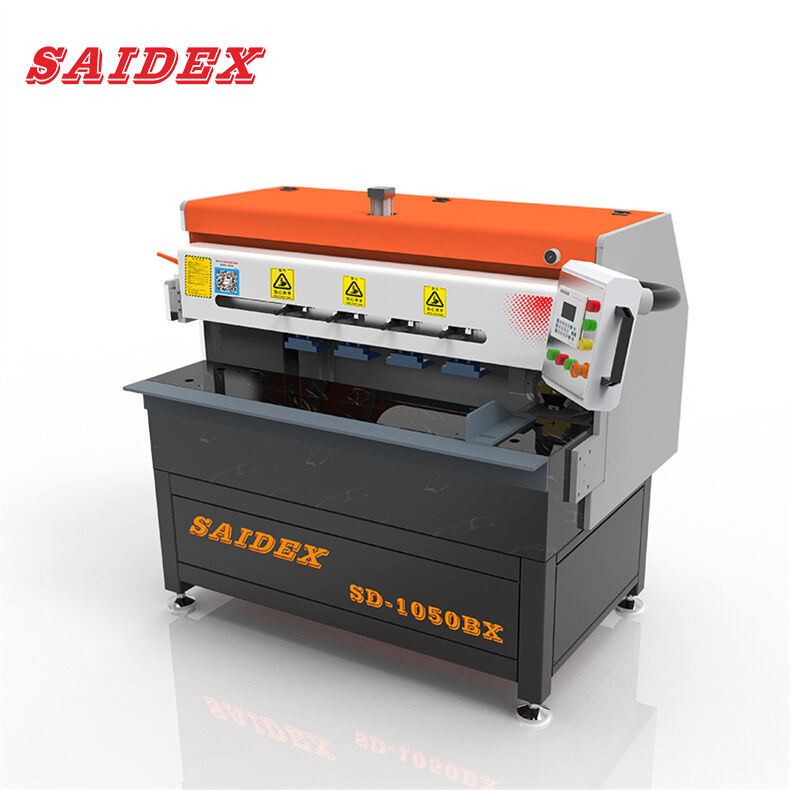

SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body

SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body

Place of Origin:

Guangdong, China

Brand Name:

SAIDE

Certification:

CE

Model Number:

SD-1050BX

Contact Us
Request A Quote
Product Details
Grade:
Industrial
Warranty:
1 Years
Voltage:
220V/50HZ
Current:
10A
Battery Capacity:
3AH
For Use On:
General Purpose
Power Source:
Electric
Customized Support:
Support
Rated Voltage:
AC220
Rated Input Power:
2500w
Dimensions:
1550mm(L)*1050mm(W)*1340mm(H)
Wheel Diameter:
100mm
Frequency:
6000-12000rpm
Weight:
1300kg
Product Name:
SD-1050BX Acrylic Diamond Polishing Machine
Product Applications:
Acrylic Edge Polishing
Cutting Angle:
0-60 Degrees
Function:
Multipurpose
Certificate:
CE
Feature:
High Efficiency
After-sales Service Provided:
Oneline
Material:
Stainess Steel
Applicable Materials:
Acrylic,ABS,Pvc,Plexiglass
Port:
Guangzhou ,shenzheng
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$1,000.00/sets >=1 sets
Packaging Details
1. Protect foam films inside,
2. Firm protect iron frame
2. Standard export plywood suitable for sea shipping for optional
Delivery Time
15 work day
Supply Ability
100 Set/Sets per Month
Product Description

SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble BodySD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body

Product Description

SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



Product parameters:

SD-1050BX Acrylic Diamond Polishing Machine

Machine size

1550mm(L) X 1050mm(W) X 1340mm(H)
Power supply  AC220
Work  area  1000mm(L) X 100mm(T)
Spindle speed 6000-12000rpm
Processing speed 0-2m/min
Cutting angle  0-60°
Air pressure input ≥0.5mpa
Machine power  2500w

Processing way

 spindle feeding
Dust collector pipe Dia φ100mm
Machine Weight 1300kg



Products Features:



1. The Mainly machine body adopts natural marble machine body, with high profile and stable structure, which effectively avoids the disadvantages such as the easy deformation of cast iron, the machine design with patent to protect.



2. Fast polishing processing speed up to 2 meters per minute;



3. NO adjustment,fast installation,accurate adjustment,the tool is  directly installed in place,without adjustment,simple operation and fast material clamping;



4. Infinite loop processing (no standby reprocessing);



5. With the operation safety protection device.



6. The machine standard volatge is 220V, suitable for the normal factory, no need customized industrial voltage.



Efficient and fast processing ability is commiteed to improving the product production rate.

 SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



Hot sale

SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble BodySD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble BodySD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble BodySD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body



1. After-sell service:


    Engineers available to service machines in overseas.
    You can also have training in our factory for free.
    24 hours online service every day, free technical support for whole machine life.

2. Technical support:


    Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
    We will provide the consumable parts whole machine life when you need replacement.

3. Warranty:


  Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.



 SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body





SD-1050BX Automatic Diamond Polishing Machine Acrylic Edge Polisher No Need Adjust Cutter Natural Marble Body

DONGGUAN SAIDE ELECTROMECHANICAL EQUIPMENT CO.,LTD


 Add: Guangdong province,Dongguan city shilong town the frist industrial zone,China


Mobile:  +86 13392020165  Mike     ( whatsapp, wechat available)



 Tips:The price is EXW price,and the product price and attributes are for reference only, not as the final transaction price,transaction price should be based on your customized demand to determine the detailed offer, please contact customer service.
