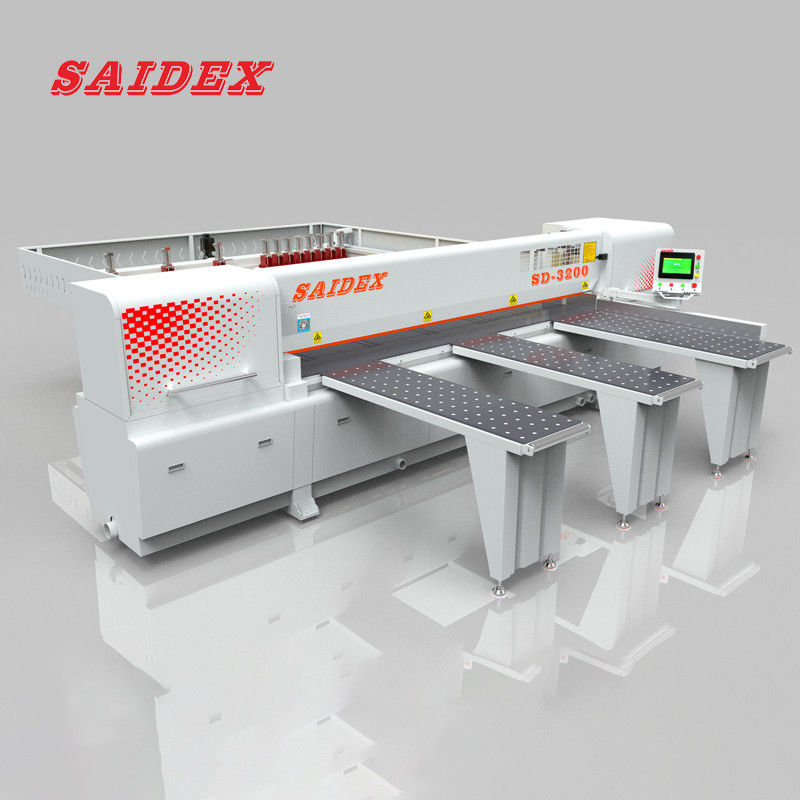

2.2KW Stable Computer Beam Saw Multifunctional 0-50m/Min Feeding Speed

2.2KW Stable Computer Beam Saw Multifunctional 0-50m/Min Feeding Speed

  • 2.2KW Stable Computer Beam Saw Multifunctional 0-50m/Min Feeding Speed
2.2KW Stable Computer Beam Saw Multifunctional 0-50m/Min Feeding Speed
Product Details:
Place of Origin: Guangdong,China
Brand Name: SAIDEX
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Confirm price based on product
Packaging Details: Angle iron frame, wood case packing
Delivery Time: To be negotiated
Payment Terms: Advance 30% deposit and ship after receiving 70% final payment
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Sawing Length: 3200mm Machine Net Weight: 5000KG
Saw Base Drive Motor: 1000W(Imported Servo) Products Name: Acrylic Cutting Saw Machine
Rotate Speed Of Main Saw Blade: 2000-5000rpm(frequency Control Of Motor Speed) Total Power: 16KW
Dimensions(L*W*H): 6250mm*5735mm*1680mm Automatic Feeding Motor: 1500W(Imported Servo)
Highlight:

2.2KW Computer Beam Saw

,

Stable Computer Beam Saw

,

Multifunctional Computer Driven Beam Saw

Acrylic Computer-Driven Saw Machine 960mm High Workbench 5-7kg/cm² Operation Pressure 2.2KW High Pressure Blower Motor

Product Description:

The Acrylic Computer-Driven Saw machine is an advanced cutting solution for the processing of acrylic materials. This computer-controlled beam saw is designed to cut acrylic materials with a high degree of accuracy and precision. It is equipped with an imported servo motor for automatic feeding, with a power of 1500W. The saw carriage can move back at up to 60m/min speed, and its main saw blade has a diameter of φ30mm, allowing for a sawing thickness of up to 120mm. This cutting saw offers superior cutting performance, efficiency and accuracy thanks to its cutting-edge computerized control system. It is ideal for the processing of acrylic materials with tight tolerances.



Features:

  • Product Name: Computer Beam Saw
  • Automatic feeding motor: 1500W(Imported Servo)
  • Sawing length: 3200mm
  • Dia. of main saw blade: φ305-455mm
  • Automatic feeding speed: 0-50m/min
  • Total Power: 16KW
  • Special features: Acrylic cutting saw machine, Acrylic CNC Beam Saw machine, Acrylic Programmable Beam Saw machine


Technical Parameters:

Feature Specification
Head saw motor 11KW
Saw carriage forward speed 1-30m/min
Saw base drive motor 1000W(Imported Servo)
Products Name Acrylic Cutting Saw Machine
Axis dia. of main saw blade φ30mm
Dimensions(L*W*H) 6250mm*5735mm*1680mm
Total Power 16KW
Automatic feeding speed 0-50m/min
Saw carriage back speed 60m/min
Rotate speed of main saw blade 2000-5000rpm(frequency Control Of Motor Speed)


Applications:

The SAIDEX Computer Beam Saw is a powerful and efficient acrylic cutting machine. Its origin is Guangdong, China and it has been certified by CE. It is capable of sawing acrylic materials with minimum order quantity of 1 set, and price will be confirmed based on product. The sawing length is 3200 mm, sawing thickness is 120 mm, rotate speed of main saw blade is 2000-5000rpm, head saw motor is 11KW, operation pressure is 5-7kg/cm² and it is capable of a supply of 100 Set/Sets per Month. The package is angle iron frame, wood case packing and the delivery time is to be negotiated. The payment terms are advance 30% deposit and ship after receiving 70% final payment.

The SAIDEX Computer Beam Saw is perfect for cutting acrylic materials with precision and accuracy. It has been specifically designed to be an Acrylic Computer-Driven Saw machine, Acrylic Intelligent Beam Saw machine and Acrylic Computer Controlled Saw machine, providing effective and efficient solutions for sawing acrylic materials. It is suitable for use in industrial production, furniture production, cabinet production, and other related production processes.



Customization:

SAIDEX Acrylic Computer Operated Saw machine, Acrylic CNC Beam Saw machine, Acrylic Computerized Beam Saw machine is a high-end product made in China, with CE certification, minimum order quantity of 1 set.

The main features of this product include: Saw carriage forward speed: 1-30m/min, Dia. of main saw blade: φ305-455mm, Workbench height: 960mm, Rotate speed of main saw blade: 2000-5000rpm(frequency Control Of Motor Speed), Saw carriage back speed: 60m/min.

The price of this product is to be confirmed based on product. The packaging detail includes Angle iron frame, wood case packing. The delivery time needs to be negotiated. The payment terms is Advance 30% deposit and ship after receiving 70% final payment. The supply ability is 100 Set/Sets per Month.



Support and Services:

Computer Beam Saw Technical Support and Service

  • Provide professional customer service and technical support
  • Offer repair and maintenance services
  • Provide technical training and instruction on proper use of the product
  • Provide troubleshooting advice and assistance
  • Provide replacement parts and components as needed
  • Answer customer inquiries and provide product information
  • Provide warranty and after-sales services


Packing and Shipping:

Packaging and shipping for Computer Beam Saw:

The Computer Beam Saw will be packaged with a shrink-wrapped cardboard box and secured with foam cushioning. The box will include a user manual and safety instructions. The box will be labelled with a warning label and the product's serial number. The box will also include a tracking label.

The Computer Beam Saw will be shipped via a reliable freight carrier. The freight carrier will be responsible for ensuring the safe and timely delivery of the product. All shipping fees will be paid by the customer.



FAQ:

Q:What is the brand name of the Computer Beam Saw?
A:The brand name of the Computer Beam Saw is SAIDEX.
Q:Where is the place of origin for the Computer Beam Saw?
A:The place of origin for the Computer Beam Saw is Guangdong, China.
Q:What certification does the Computer Beam Saw have?
A:The Computer Beam Saw has CE certification.
Q:What is the minimum order quantity for the Computer Beam Saw?
A:The minimum order quantity for the Computer Beam Saw is 1 set.
Q:What is the price for the Computer Beam Saw?
A:The price for the Computer Beam Saw is to be confirmed based on the product.
