Place of Origin:
Guangdong,China
Brand Name:
SAIDEX
Certification:
CE

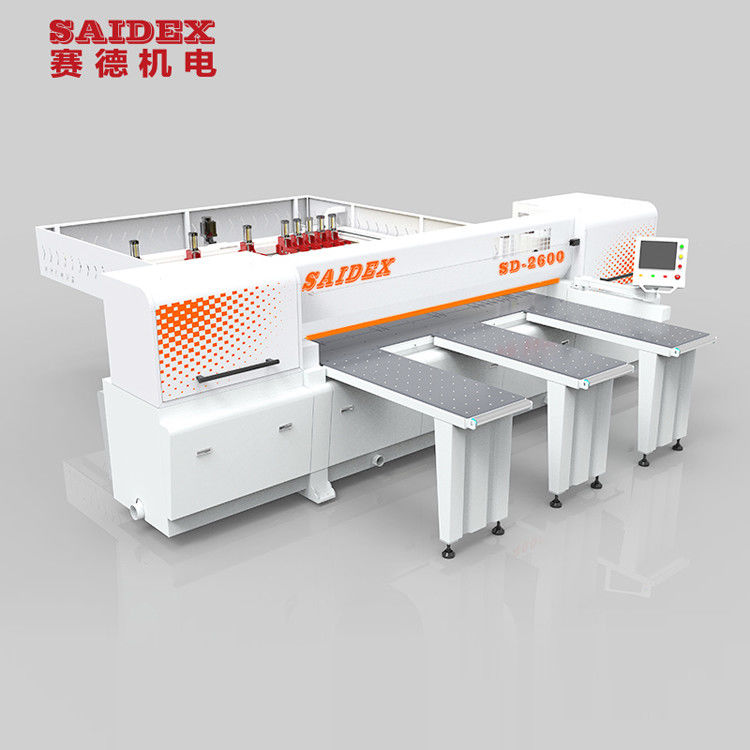

5000KG Acrylic Cutting Saw Machine Computer Beam Saw 6250mm*5735mm*1680mm
The Acrylic Computer Guided Saw machine, also known as the Acrylic Computer Controlled Saw machine or Acrylic CNC Beam Saw machine, is a cutting-edge sawing equipment designed specifically for acrylic materials. It is equipped with a powerful 11KW head saw motor, and its maximum sawing length is up to 3200mm. With a working pressure of 5-7kg/cm², it can cut acrylic materials with a diameter of 305-455mm with high precision. The high pressure blower motor is 2.2KW, which ensures a stable and efficient operation. This Acrylic Computer Guided Saw machine is the ideal choice for any acrylic material cutting task.
Products Name | Acrylic Cutting Saw Machine |
---|---|
Automatic feeding speed | 0-50m/min |
Sawing length | 3200mm |
Saw carriage forward speed | 1-30m/min |
Automatic feeding motor | 1500W(Imported Servo) |
Saw carriage back speed | 60m/min |
Operation pressure | 5-7kg/cm² |
Dia. of main saw blade | φ305-455mm |
Sawing thickness | 120mm |
Dimensions(L*W*H) | 6250mm*5735mm*1680mm |
SAIDEX Acrylic Computerized Beam Saw machine is a high-performance saw machine specially designed for acrylic sheet cutting. It is widely used in the manufacturing process of acrylic sheets and acrylic display stands. With the CE certification, this computer-driven saw machine is of high quality and reliable performance. It is equipped with an 11KW saw motor and can cut acrylic sheet with a thickness of up to 120mm. The operation pressure is adjustable between 5-7kg/cm², and the saw carriage can move back with a speed of 60m/min. The workbench height is 960mm, making it easy to work with large acrylic sheets.
SAIDEX Acrylic Automated Beam Saw machine is an ideal choice for acrylic sheet cutting. It is easy to operate and requires minimum maintenance. The minimum order quantity is 1 set, and the price is negotiable. All the goods are safely packed in angle iron frame or wood cases for delivery. The payment terms are advance 30% deposit and the balance 70% before shipment. We can supply up to 100 sets per month.
We provide 24/7 technical support and service for Computer Beam Saw. Our team of experts are available to assist you with any technical challenges you may encounter, and provide guidance on how to optimize performance. Whether you need advice on installation, troubleshooting, diagnostics, or maintenance, we’re here to help.
We offer a variety of services to ensure that your Computer Beam Saw functions properly and efficiently. This includes providing software updates, performing hardware repairs or replacements, and conducting system checks. Our technicians are also available to provide on-site support and technical training.
If you have any questions or require assistance, please do not hesitate to contact us. We look forward to helping you make the most of your Computer Beam Saw.
At Computer Beam Saw, we take great care to ensure that our products are safely and securely packaged for shipping. All products are inspected to ensure that no damage has occurred during transportation. We then package the products in a sturdy box with additional padding to protect against any further damage during shipping. We also use special shipping labels to identify the contents of each package. Finally, we use a reliable shipping service to ensure that the products arrive at their destination without any issues.
