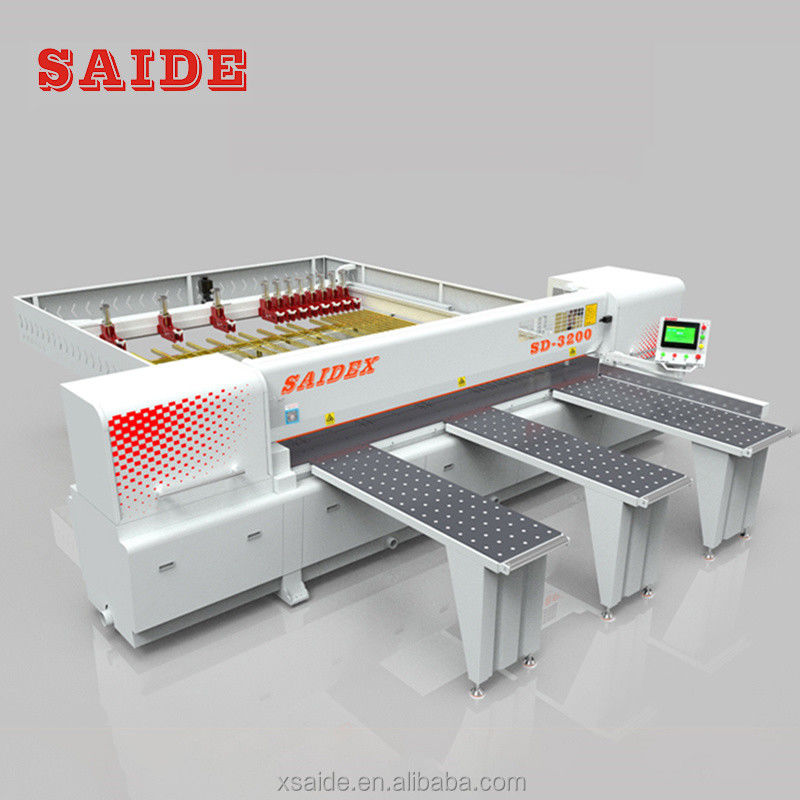

SD3200 high precision automatic acrylic PM PS cutting saw machine
SAMPLES FREE! SAMPLES FREE! SAMPLES FREE!
Efficient and fast processing ability is commiteed to improving the product production rate.
Products Features:
1. Reliable servo motor and control device.
2. High quality panasonic controller PLC.

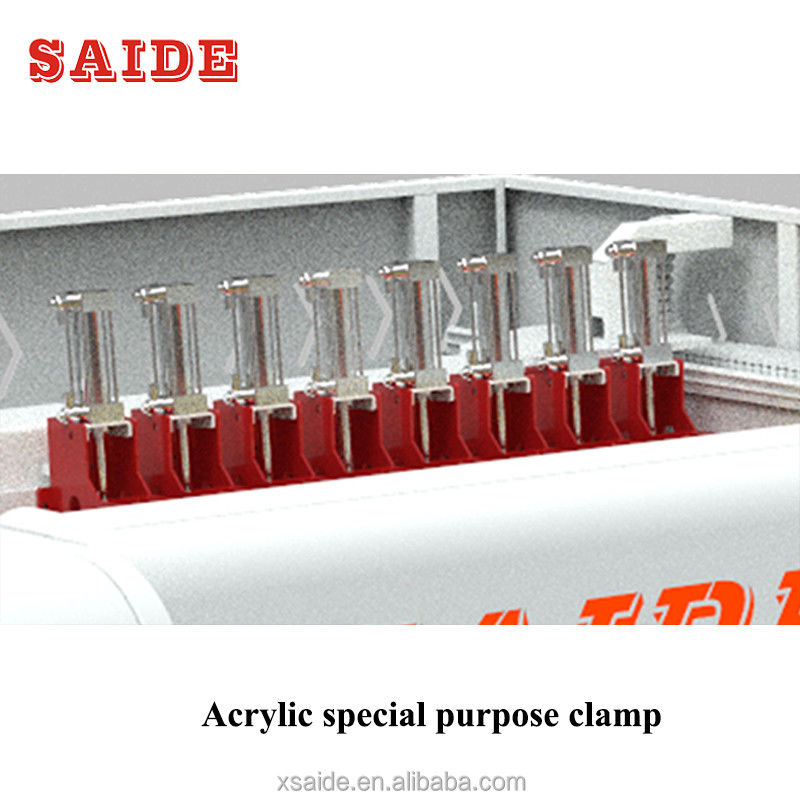

3. Acrylic special purpose clamp, convenient for samll materails.
4. Electronic ruler from German, precision compensation, resolution 0.01mm.
5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.
6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC
7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, panasonic servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .
| Products Name |
SD-3200 |
| Dimensions(L*W*H) |
6250mm*5735mm*1680mm
|
| Sawing length |
3200mm |
| Sawing thickness |
120mm |
| Dia. of main saw blade |
φ305-455mm |
| Axis dia. of main saw blade |
φ30mm |
| Rotate speed of main saw blade |
2000-5000rpm(frequency control of motor speed) |
| Saw carriage forward speed |
1-30m/min |
| Saw carriage back speed |
60m/min |
| Head saw motor |
11KW |
| Saw base drive motor |
1000W(Imported servo) |
| Automatic feeding motor |
1500W(Imported servo) |
| High pressure blower motor |
2.2KW |
| Total Power |
16KW |
| Automatic feeding speed |
0-50m/min |
| Operation pressure |
5-7kg/cm² |
| Workbench height |
960mm |
| Machine net weight |
5000KG |

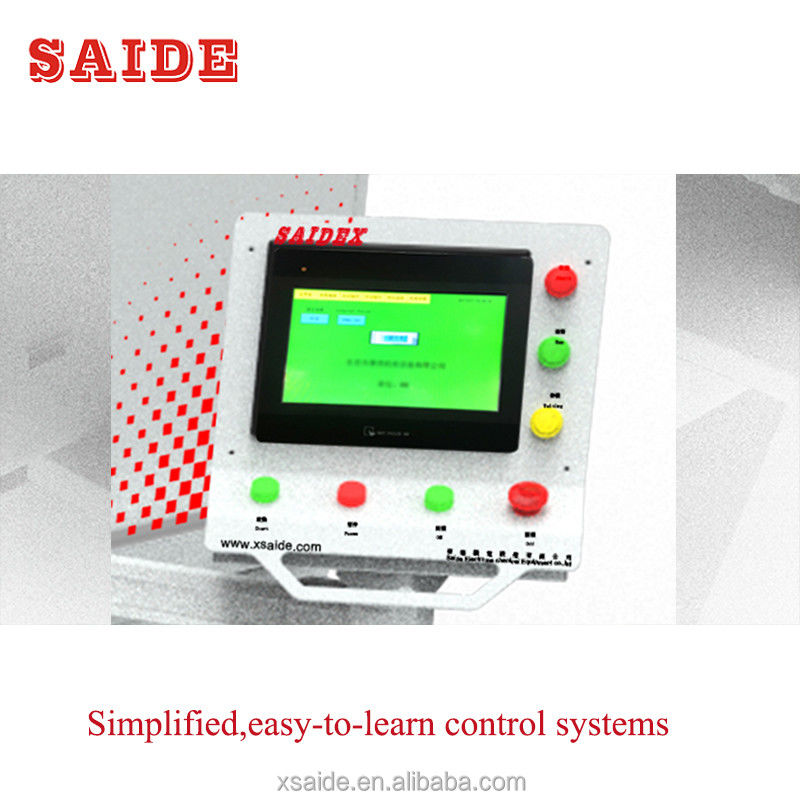

1. HD Touch screen control system:
1) Easy operation, safety & reliable.
2) Which has complete operating hints and troubleshooting guide functions.
3) It’s cutting plan can edit manually; can simulate or execute cutting plans.
2. Japan Panasonic PLC control system.
3. Saw carrier
1) Driven by imported high-precision rack & pinion, stable movement, ensure cutting precision.
2). Saw carrier pull back position automatically controlled base on next cutting length,
Which reduce unused moving time and greatly improve efficiency.
3). Max cutting speed reach to 60m/min.

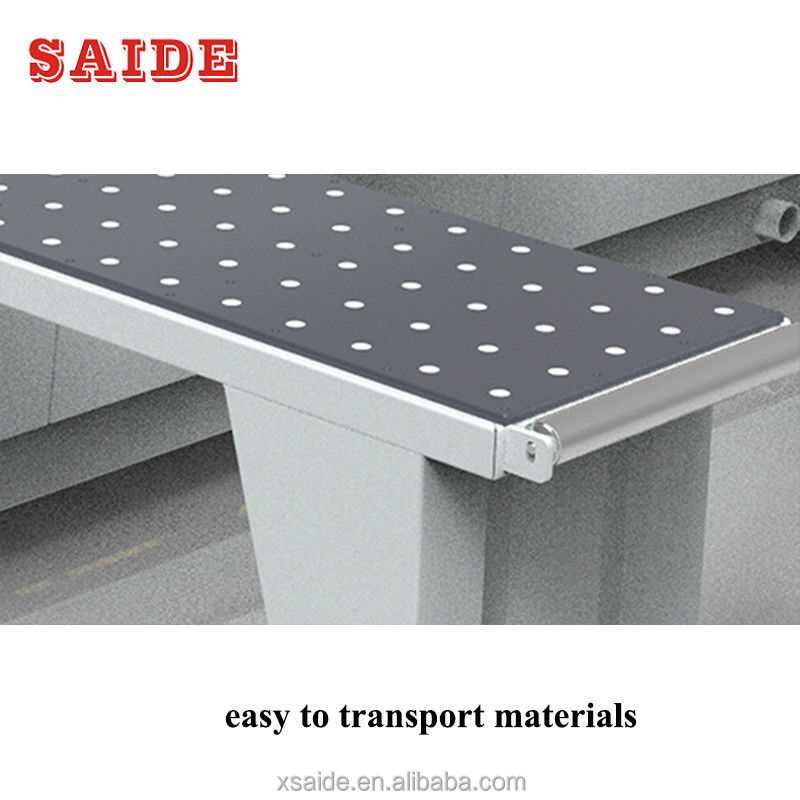

4. Loading system: Air floating loading table,avoiding board scratching and assuring
smoother board movement, suit for heavy and big type PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .
5. Position system:
Imported CNC automatic positioning ruler & slid rail, effectively avoid the artificial
operation error, and greatly increase cutting accuracy. Machine can receive high precesion about 0.01mm.
1. After-sell service:
Engineers available to service machines in overseas.
You can also have training in our factory for free.
24 hours online service every day, free technical support for whole machine life.
2. Technical support:
Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
We will provide the consumable parts whole machine life when you need replacement.
3. Warranty:
Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.
