Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect

Place of Origin:

Guangdong, China

Brand Name:

SAIDE

Request A Quote

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect

Product Details

Condition:

New

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

Hot Product 2019

Warranty Of Core Components:

1 Year

Core Components:

PLC, Motor

Application:

Acrylic Workpiece

Power (kW):

5.5kw

Warranty:

1 Year

Key Selling Points:

High-accuracy

Weight (KG):

400 KG

Applicable Industries:

Manufacturing Plant

Showroom Location:

Canada, United States, Italy, Viet Nam, Saudi Arabia, Indonesia, India, Thailand, Morocco, South Korea, UAE, Japan, Malaysia

Machine Size:

1950mm(L)*1080mm(W)*1285mm(H)

Work Area:

700mm(L)*20mm(W)(The Bevel Edge Width)

Spindle Speed:

2400/rpm

Processing Speed:

0~6m/min

Steam Input:

≥0.5mpa

Machine Power:

5.5kw

Processing Straight-line Accuracy:

±0.02mm

Processing Way:

The Spindle Feed

Cutting Angle:

25°~ 60°

Machine Weight:

400kg

Port:

Guangzhou, Shenzhen

Payment & Shipping Terms

Price

$1,000.00/sets >=1 sets

Packaging Details

Angle iron frame, wood case packing

Supply Ability

100 Set/Sets per Month

Factory Direct Supply Of Acrylic Trimming Machine Plexiglass 45 Degree Beveled Edge Bevelling Machine Acrylic Chamfering Machine

Get Best Price

Acrylic Chamfering Machine And Trimming Machine Bit Tool 45 Degree Bevelled Edge Chamfering Machine

Get Best Price

SAIDE Fix Angle V-45 Degree Acrylic Edge Chamfering Cutting Polishing Machine

Get Best Price

SD-XB1065 Acrylic Beveling Machine Highlight 45-60 degree Acrylic Chamfering Machine For PC PS PP Plastic Sheets

Get Best Price

+8613392020165

sales012@xsaide.com

Contact Now

Product Description

Anti-droplet partition SD-R70 high speed acrylic chamfering machine R corner fillet special chamfering processing effect

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 0

Product Description

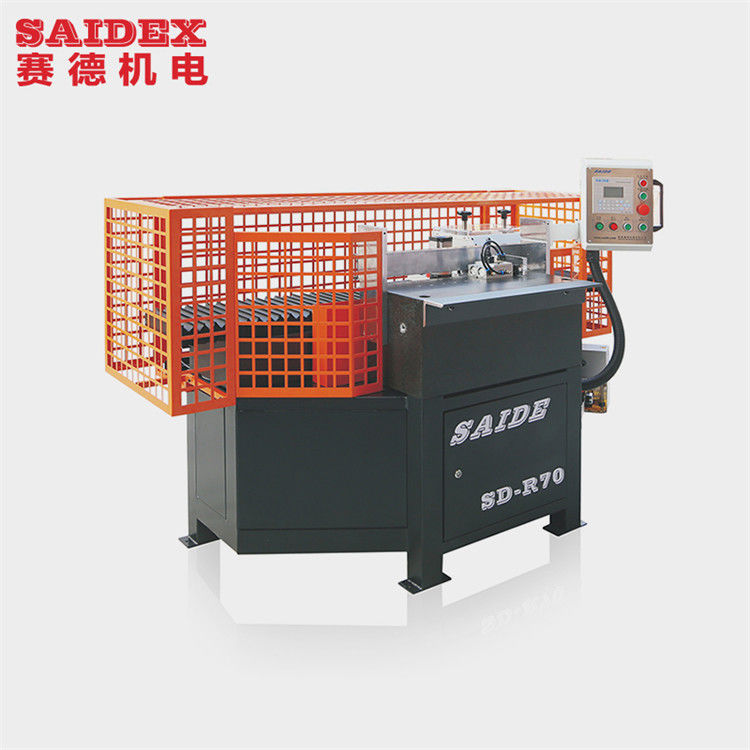

Products Name	SD-R70 High speed acrylic chamfering machine
Machine size	1950mm(L)×1080mm(W)×1285mm(H)
Power supply	AC220V
Work area	700mm(L)×20mm(W)(The bevel edge width)
Cutting angle	25°~ 60°
Spindle speed	2400/rpm
Processing speed	0~6m/min
Steam input	≥0.5mpa
Machine power	5.5kw
processing straight-line Accuracy	±0.02mm
Processing way	The spindle feed
Suction inlet	φ100mm
Machine weight	400kg

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 1

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 2

Hot sale

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 7

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 8

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 9

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 10

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 11

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 12

Anti-droplet partition SD-R70 High Speed Acrylic Chamfering Machine R Corner Fillet Special Chamfering Processing effect 13 Tips:

The price is EXW price,and the product price and attributes are for reference only, not as the final transaction price,transaction price should be based on your customized demand to determine the detailed offer, please contact customer service.
