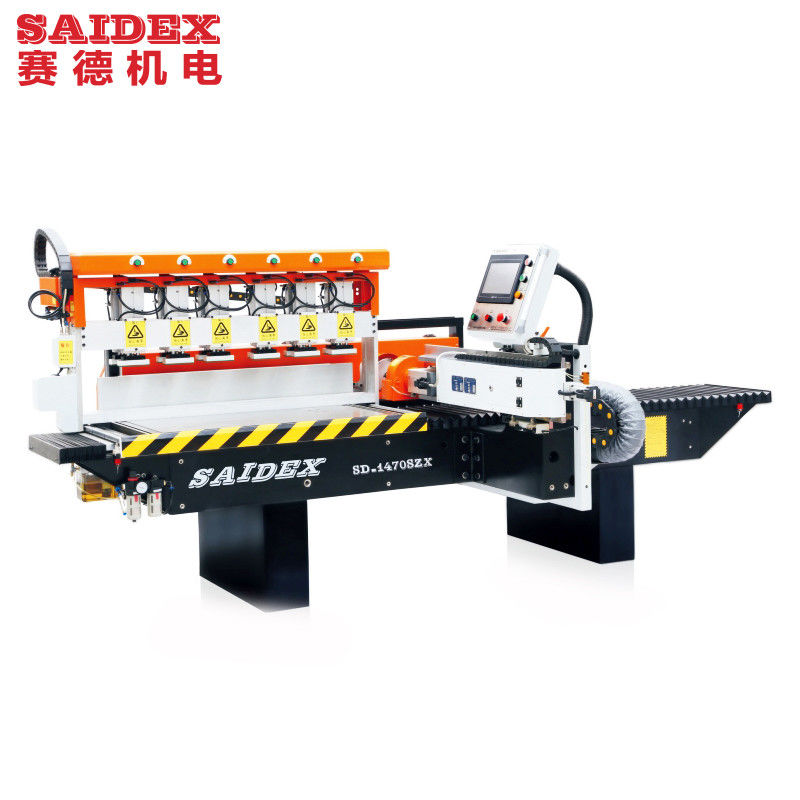

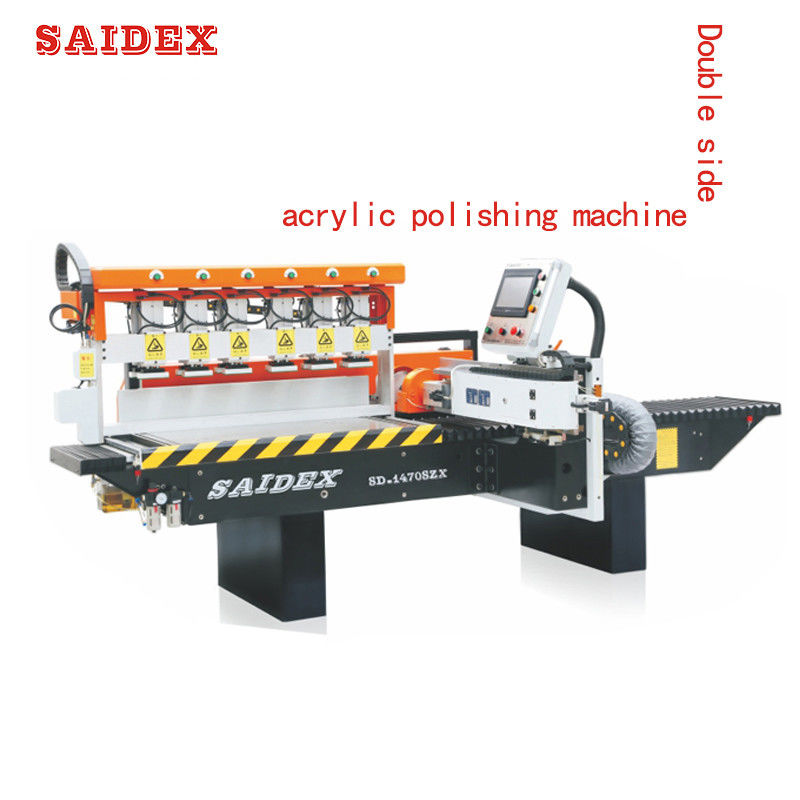

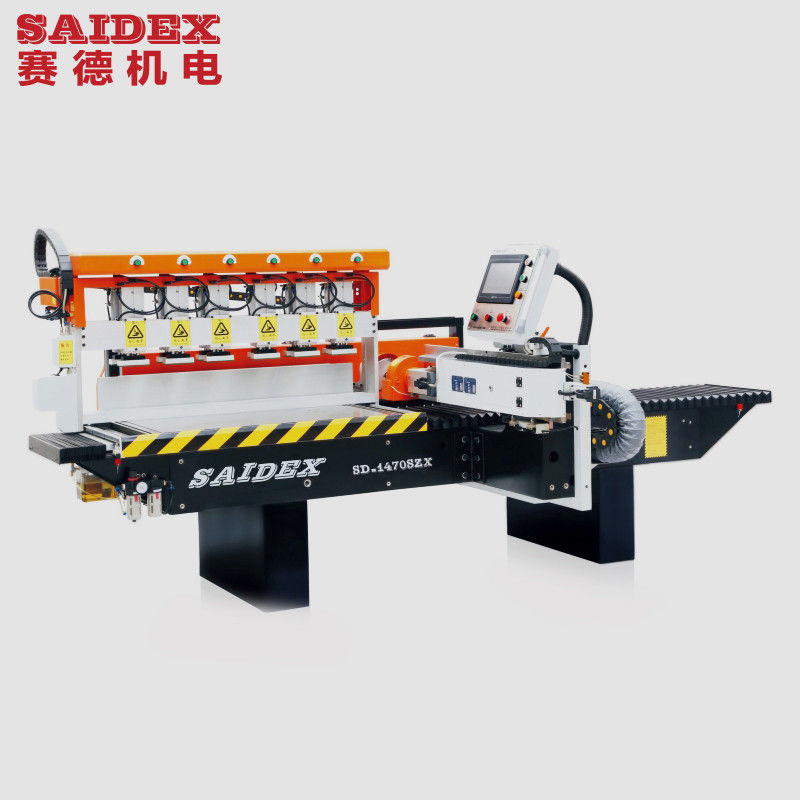

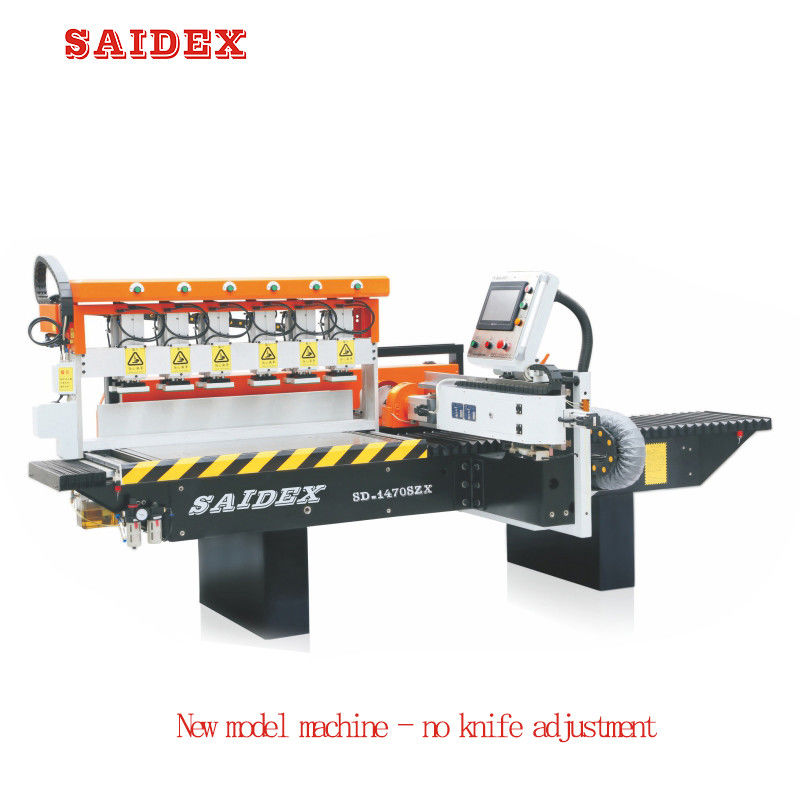

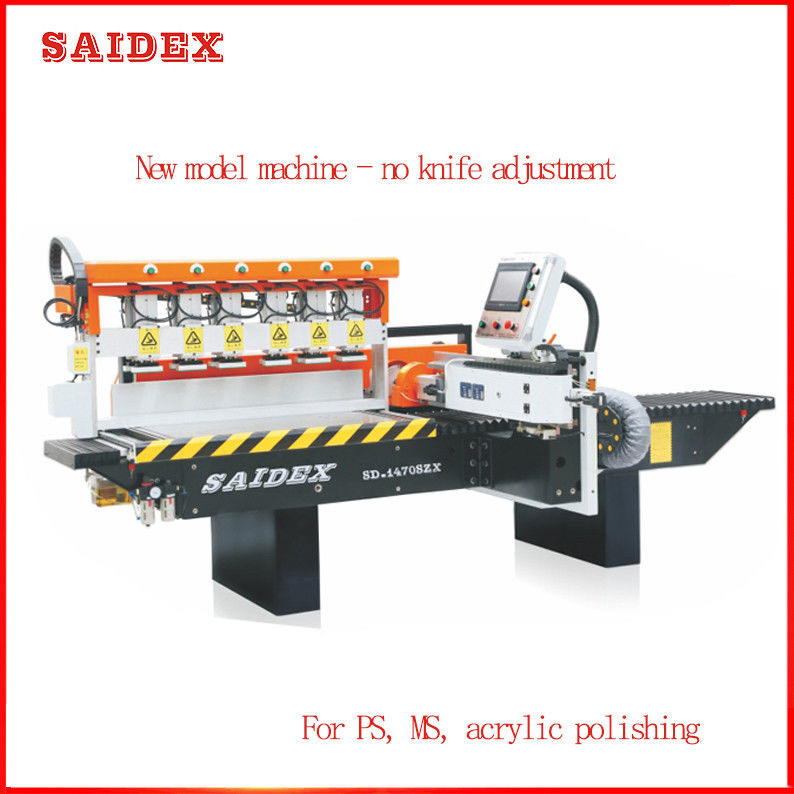

2021 hot sell No adjustment of knife SD-1470SZX high speed acrylic diamond polishing machine
Product Description
| Products Name |
SD-1470SZX double-side high speed acrylic diamond polishing machine |
| Cutting depth |
0.1-1.5mm |
| Machine size |
3600mm(L)×2400mm(W)×1600mm(H) |
| Power supply |
AC380 |
| Work area |
1350mm(L)×(55-700)mm(W)×140mm(H) |
| Spindle speed |
6000-12000rpm |
| Processing speed |
0-2m/min |
| Cutting angle |
0°(can be customized angle) |
| Steam input |
≥0.5mpa |
| Machine power |
4.5kw |
| Processing straight line accuray |
0.03mm |
| Processing way |
The workpiece feed |
| Suction inlet |
φ100mm |
| Machine weight |
4000kg |
| Size adjustment control |
Automatic |
| Presser foot control adjustment |
Automatic |
12 years professtional factory for top quality acrylic products equipments.
Products Features:
1.SD-1470SZX double-sided high-speed polisher,with the processing precision of ±0.03mm,is specially designed for the enterprises with high precision requirements on light guide plates,liquid crystal displays and panel lights with the processing dimension within 1350mm(L)*(55-700)mm(W)*140mm;
2.The minimun width of the machine can reach 55mm.It can process the PMMA craft product with high-precision and high-speed requirements;
3.The whole machine adopts the natural marble with stability and not deformation;
4.It has the own anti-collision function;
5.No adjustment,fast installation,accurate adjustment,the tool is directly installed in place,without adjustment,simple operation and fast material clamping;
6. Three axis digital automatic adjustment of the size,the size of the adjustment of the japanese Panasonic servo;
7.The unique moving suction structure makes the suction effect more prominent.
Efficient and fast processing ability is commiteed to improving the product production rate.
1. After-sell service:
Engineers available to service machines in overseas.
You can also have training in our factory for free.
24 hours online service every day, free technical support for whole machine life.
2. Technical support:
Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
We will provide the consumable parts whole machine life when you need replacement.
3. Warranty:
Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.
4.Tips:
The price is EXW price,and the product price and attributes are for reference only, not as the final transaction price,transaction price should be based on your customized demand to determine the detailed offer, please contact customer service.
Why Choose Us
--A full set of acrylic processing equipment manufacturers
--More than 12 years experience in acrylic equipment manufacturing and processing technology.
--SAIDE have professional after-sales team, with full experience on installation, training and maintenance.
--Located in Dongguan city, the famous export trade city in China, we can get in touch with the trends on materials and its processing fields in time.
--Close to Guangzhou, the biggest city on trading and logistic, ensure you can purchase our machine in the lowest cost and the easy way.
