Place of Origin:
Guangdong, China
Brand Name:
SAIDE
Model Number:
SD-1350

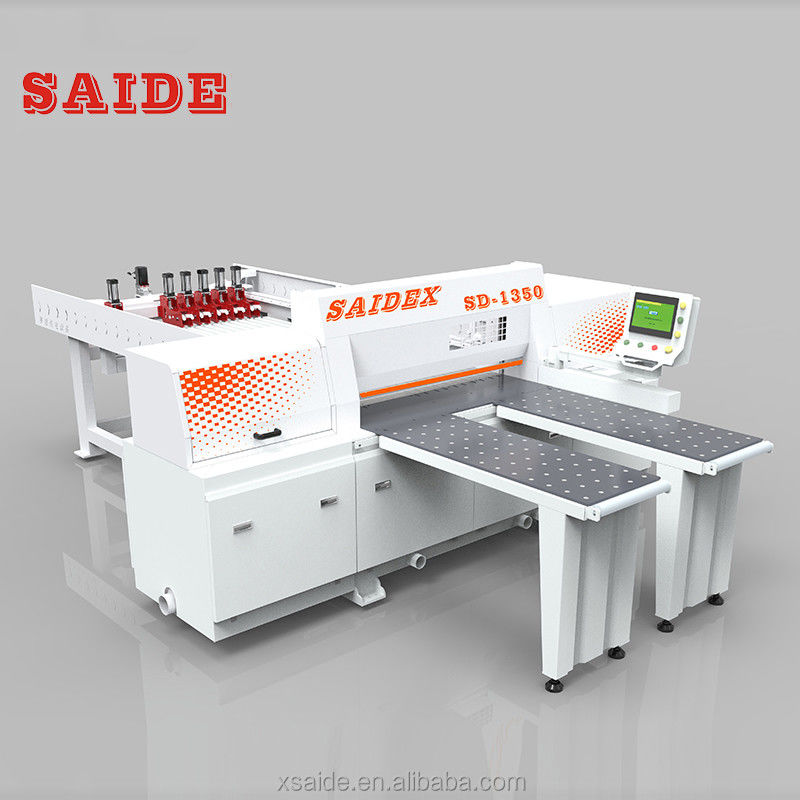

Anti-droplet Partition America Standard Top Quality High Precision Acrylic Plexiglass Plastic Cutting Saw Good Price
Products Name | SD-1350 Acrylic electronic cutting saw |
Dimensions(L*W*H) | 5200mm*3400mm*1560mm |
Sawing length | 1350mm |
Sawing thickness | 60mm |
Dia. of main saw blade | φ305-355mm |
Axis dia. of main saw blade | φ30mm |
Rotate speed of main saw blade | 2000rpm(Frequency control of motor speed) |
Saw carriage forward speed | 1-30m/min |
Saw carriage back speed | 60m/min |
Head saw motor | 7.5KW |
Saw base drive motor | 750W(Imported servo or Made in China) |
Automatic feeding motor | 750W(Imported servo or Made in China) |
High pressure blower motor | 2.2KW |
Total Power | 11KW |
Automatic feeding speed | 0-50m/min |
Operation pressure | 5-7kg/cm² |
Workbench height | 940mm |
Machine net weight | 3000KG |
Products Features:
1. Reliable servo motor and control device.
2. High quality panasonic controller PLC.
3. Acrylic special purpose clamp, convenient for samll materails.
4. Electronic ruler from German, precision compensation, resolution 0.01mm.

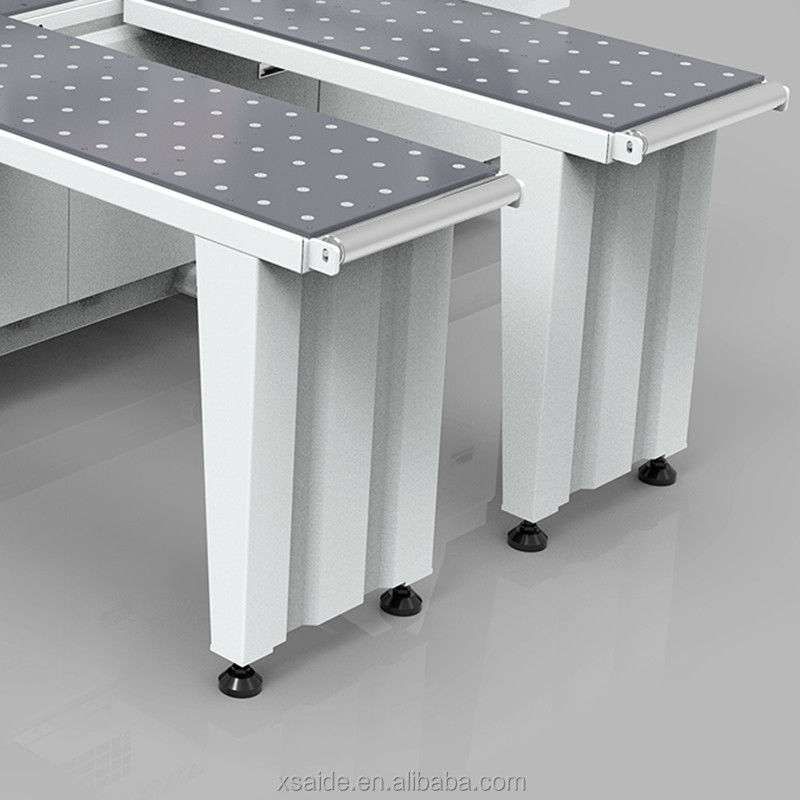

5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.
6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC
7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .
Efficient and fast processing ability is commiteed to improving the product production rate.
1. After-sell service:
Engineers available to service machines in overseas.
You can also have training in our factory for free.
24 hours online service every day, free technical support for whole machine life.
2. Technical support:
Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
We will provide the consumable parts whole machine life when you need replacement.
3. Warranty:
Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.
4.Tips:
Product prices and attributes for reference only, not as the final transaction price, transaction price should be based on your customized needs to determine the detailed offer, please contact customer service
