Cnc Computer Panel Saw Mdf Board Electronic Chopping Saw Acrylic Electronic Cutting Saw

Place of Origin:

Guangdong, China

Brand Name:

SAIDE

Request A Quote

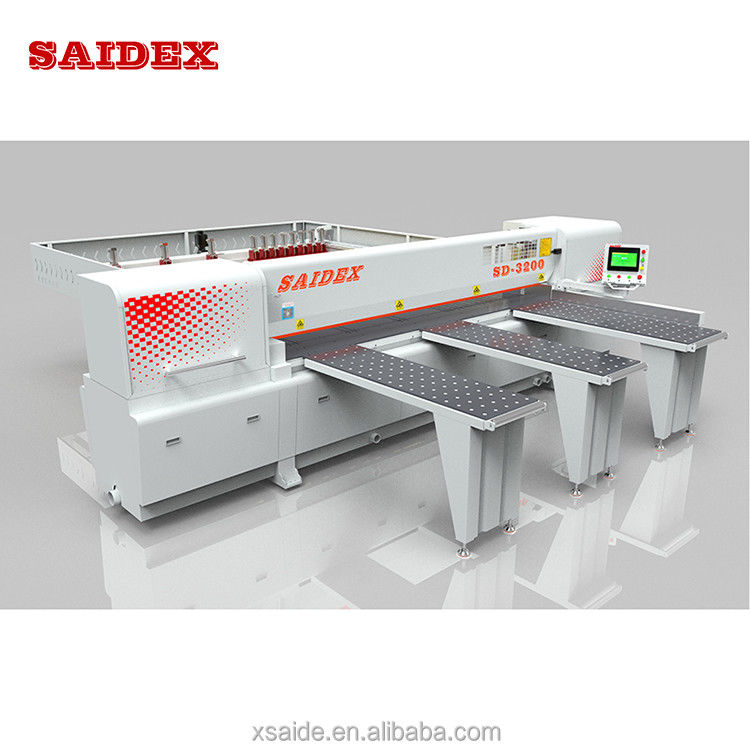

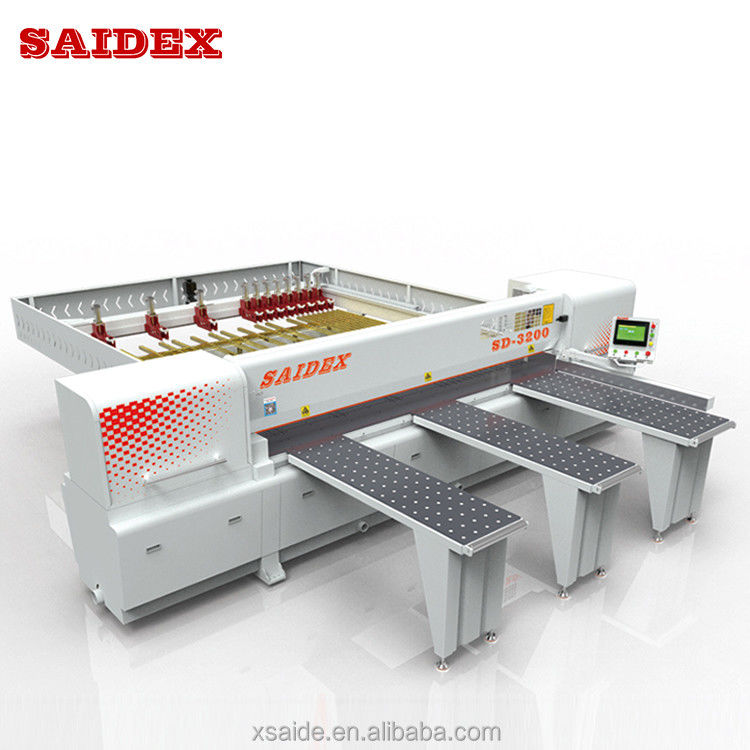

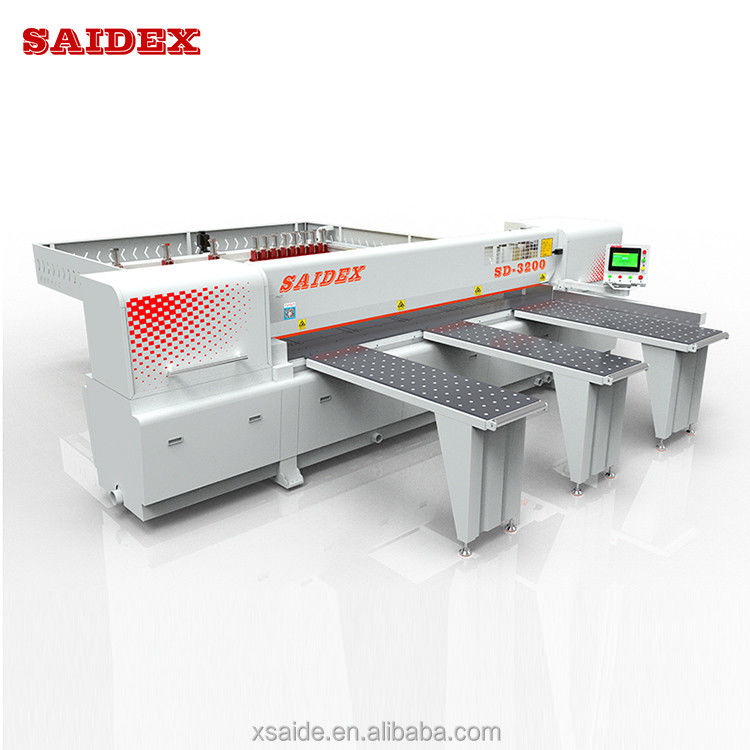

Cnc Computer Panel Saw Mdf Board Electronic Chopping Saw Acrylic Electronic Cutting Saw

Product Details

Condition:

New

Type:

Circular Saw

Use:

Acrylic Cutting

Style:

Horizontal

Usage:

Sawing Acrylic/PC Plastic Sheet

Voltage:

380V/50HZ/3PH, Or Customized

Dimension(L*W*H):

6250*5735*1680mm

Warranty:

1 Year

Application:

Acrylic Sheet Factory, Plexiglass Products Factory, Display Supplies Advertising Company

Weight (KG):

5000 KG

Power (kW):

16kw

Key Selling Points:

Easy To Operate

Applicable Industries:

Hotels, Manufacturing Plant, Other, Advertising Company

Marketing Type:

Ordinary Product

Machinery Test Report:

Not Available

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

PLC

Saw Length:

3200mm

Saw Width:

3200mm

Saw Thickness:

120mm

Port:

Guangzhou, Shenzhen, Shekou, Huangpu

Payment & Shipping Terms

Price

$1,000.00/sets >=1 sets

Packaging Details

1. Protect foam films inside
2. Standard export plywood suitable for sea shipping

Supply Ability

100 Set/Sets per Month

Top Sell Special Magnet Fix Gadget Disc Rotary Fixture Acrylic Glue Bonding Workbench Work Platform

Get Best Price

30 degree, 45 degree 60 degree chamfer polish at the same time Acrylic Machine

Get Best Price

Europe High Precision 0.01mm SD-2600 Automatic Wood Acrylic PM PS Plastic Cutting Saw Machine

Get Best Price

SD-3800 Acrylic Tablet Saw High Precision Acrylic Panel Saw Machine Automatic PM PS Acrylic Electronic Cutting Saw

Get Best Price

+8613392020165

sales012@xsaide.com

Contact Now

Product Description

Product Description

Specification

Scope of application	PMMA、PS、MS专用
Dimensions（LWH)	625057351680mm
Sawing length	3800mm
Sawing width	3800mm
Sawing thickness	120mm
Dia. of main saw blade	Φ305-455mm
Axis dia. of main saw blade	Φ30mm
Brand Name	SAIDE
Usage	Sawing acrylic/PC plastic sheet
Dia. Of grooving saw blade	Φ200mm(optional)
Axis dia. of grooving saw blade	Φ30mm
Rotate speed of grooving saw blade	7000rpm
Saw carriage back speed	60m/min
Saw carriage forward speed	1-30m/min
Head saw motor	11kW
Saw base drive motor	1kW(Imported servo)
Automatic feeding motor	1.5kW(Imported servo)
High pressure blower motor	2.2kW
Total Power	16kW
Automatic feeding speed	0-50m/min
Operation pressure	5-7kg/c㎡
Workbench height	960mm
Machine net weight	5000kg

Packing & Delivery

1. Protect foam films inside 2. Standard export wood frame suitable for sea shipping

Company Profile

Dongguan saide electromechanical equipment co.,ltd is a manufacturer of Acrylic polishing machine with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in light panel/PMMA product and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

FAQ

1. who are we?
We are based in Guangdong, China, start from 2016,sell to Northern Europe(5.00%),South America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Acrylic polishing machine,Acrylic chamfering machine,Acrylic reverse corner machine,Acrylic electronic cutting saw,CNC engraving machine

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:null;
Accepted Payment Type: T/T;
Language Spoken:null
